Product Description
Dimension:
11.5 (W)*30 (L) * 5~10(H) mm
Electrical Characters:
Input:
DC5~24V. (Input = Output)
Maxium Power Load:
12V-8A, 24V-5A
Media thickness:
0~2mm Plastic / wood etc.
Product Overview

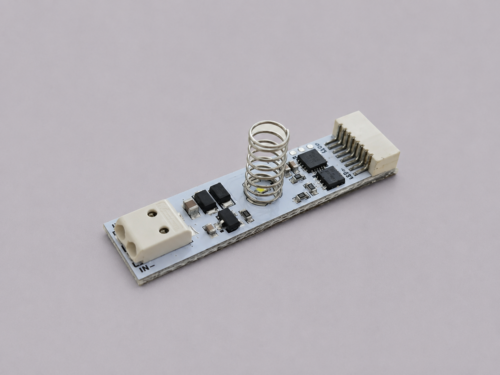

Designed for integration within aluminum profiles, this 4-channel touch sensor provides intuitive control for RGBW LED strips. The unit features intelligent Power-Off Memory, automatically restoring theprevious light setting when powered on.
Control Logic
The sensor utilizes 4 distinct MOSFET outputs to control channels individually (sequential activation).
· Short Touch (Dimming & Power): Cycles the brightness level of the current channel: 100% → 50%→ OFF.
· Long Touch (Channel Switching): Cycles through the 4 output channels (e.g., Red → Green → Blue→ White). Only one channel is active at a time
