Product Description
User Parameters:

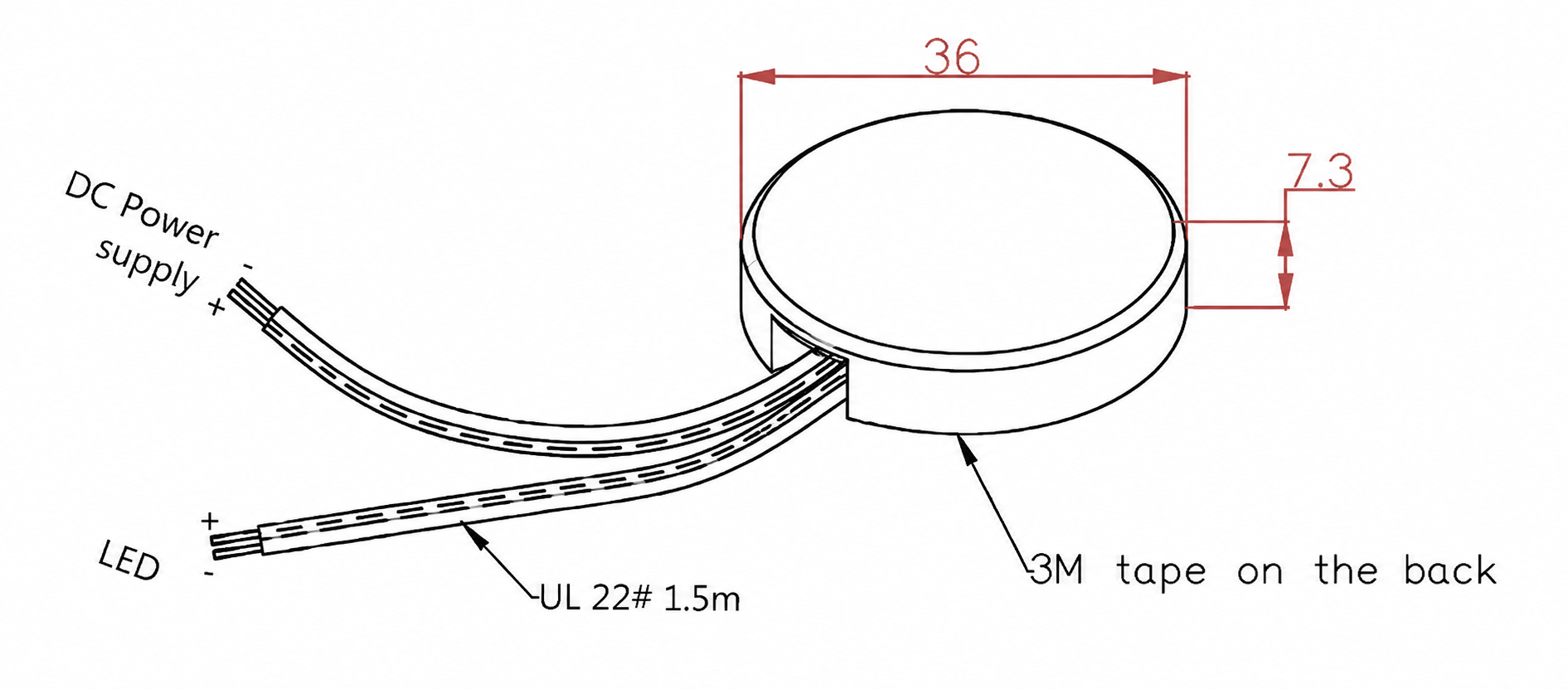

Dimension: 36 (D)*7.3(H) mm
Input: DC5~24V. (Input = Output)
Maxium Power Load: 12V-5A, 24V-4A
Functions:
The sensor is with aluminum body and anodized surface. the input and output cables can be
routed horizontally or hidden at the back. stick the sensor on desk or furniture. touch
the aluminum body to control the light.
Short Touch: control ON/OFF.
Long Touch: Brightness will change alternatively from 5% to 100%, the new brightness will be
stored(even power off) after touch release.
