Product Description
User Parameters:
Dimension: 24 (W)*82 (L) * 7.5(H) mm
Input: DC5~24V. (Input = Output)
Maxium Power Load: 12V-6A, 24V-4A
Sensor Distance: typically 50mm
Functions:

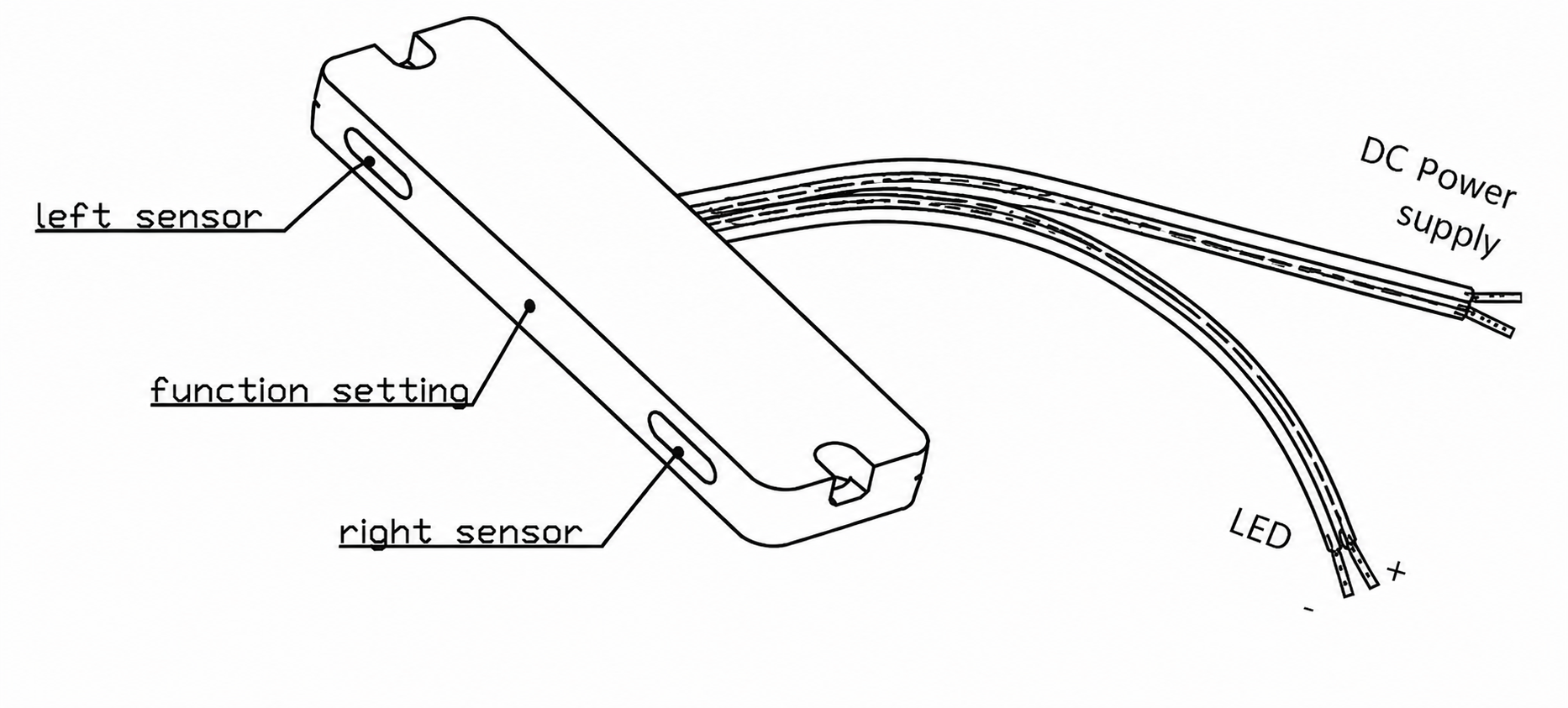

This sensor is usually installed inside the wardrobe. the left sensor face to left door, right sensor face to right door. follow the instruction to connect the sensor with LED and power supply. install the sensor into position and then power ON. the LED will automatically ON when any door is opened. Automatically turn off when both door closed.
there’s a function setting hole in front of sensor, by use the Pin to do the setting:
1. Short press, switch the function between DOOR SENSOR MODE and WAVING SENSOR MODE.
2. Long press for more than 2s, enable or disable(default) the function of AUTO-OFF. which means, in DOOR SENSOR MODE, the LED will maxiumly light ON for 10minutes if AUTO-OFF been activated.
