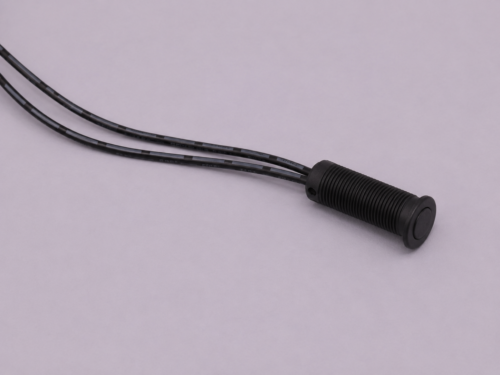

Product Description
User Parameters:
Dimension: 10 (D1)*13 (D2) * 35(H) mm
Input: DC5~24V. (Input = Output)
Maxium Power Load: 12V-5A, 24V-3A
Sensor Distance: typically 40mm
Functions:

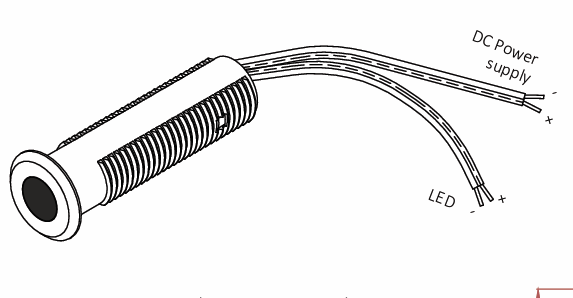

Prepare a hole of 10~10.5mm on furniture, push the sensor into the hole. Let the lens facing towards the door. Follow the instruction to connect the sensor with LED and power supply. Ensure the sensor was pushed into position and then power ON. The LED will automatically ON when the door is opened. automatically turns off when the door is closed .
