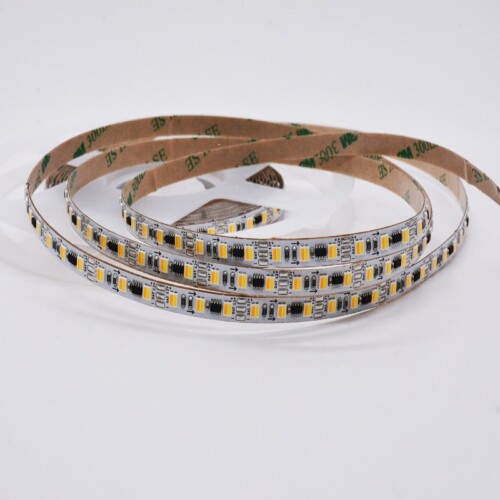

24V 2835 LED strips 120LEDs/m

Product Description

Specifications :

LED Density	PCB Width	PCB Type	DC Input	Cutting Unit(L)
120LEDs/m	8mm	double layer,2OZ/3OZ	24V	50mm(6LEDs)

DC24V
Order No.	CRI	Lumen Efficiency	Lumen/m	Power
SL-SF120-2835AA2C824	>80	115LM/W	1100LM	9.6W/m
SL-SF120-2835AA3C824	>80	114LM/W	1650LM	14.4W/m
SL-SF120-2835AA4C824	>80	112LM/W	2300LM	20W/m
SL-SF120-2835AA2C924	>90	96LM/W	920LM	9.6W/m
SL-SF120-2835AA3C924	>90	95LM/W	1350LM	14.4W/m
SL-SF120-2835AA4C924	>90	95LM/W	1920LM	20W/m
SL-SF120-2835AA2CF24	Full spectrum (CRI>96)	82LM/W	780LM	9.6W/m
SL-SF120-2835AA3CF24		81LM/W	1160LM	14.4W/m
SL-SF120-2835AA4CF24		81LM/W	1600LM	20W/m

Quality:

LED Chip: Default use high performance Chip with golden Wire and big inner chip size.Size:

FPC: default use double layer(both side high quality white film coated), cooper 25+35um. optional in 35+70um. and 35+105um.

SMT Technology: Pb Free

Tape: 3M original

Warranty: 3year

Color: Request for Spectrum Test Report

CRI optional in :

1. CRI>80 suit for general application.

2. CRI>90 (Default) light is more soft, suit for high quality light requirement, like commercial lighting, furniture lighting.

3. full spectrum color (CRI>96, close to sunlight) light is more close to sunlight, healthy to eyes, suit for high quality requirements, like classroom, desk light, office light.

Spectrum Compare:

CRI>80

CRI>90

Full Spectrum(CRI>96)

from R1-R15, each value represent a specified color rendering ability, a higher value means more close to sunlight. especially the R9 value.

if want to illuminate an red apple, the R9 must be high. if want to illuminate Human(Asia), the R15 must be high. for a museum lighting, each value must be high. a higher CRI can solve various color rendering problems.

SDCM: default to make the SDCM<3

Color BIN: only provide one BIN for all range of colors
